Have a look at the people from Vinnant in Slovakia.
I have multiple antennas from them, a number of them are outdoors and I never had an issue with that equipment.I have almost all types except the FE series in use.
They have multiple options for reasonable prices and they ship it against realistic cost to your place.
The COL1090/5-SU is on par with the Flightaware outdoor antenna.
I see from your stats that you seem to be running a FlightFeeder but it says you have Version 10.
According to this post Version 10 is not available for the FlightFeeder:
Is it your own FlightFeeder or a FlightAware one?
Are you sure it is a corrosion problem and not that you might have broken things by updating the Firmware?
If it is a FlightAware FlightFeeder then they may be able to provide a replacement antenna if it has failed. It looks like there were some faulty ones supplied:
Support for FightAware managed FlightFeeders is at:
Hi thanks for the reply and information. The equipment is all from Flightaware. Software is version 10.0. I received it in August 2018, and I got a new antenna from them in 2022? after the outdoor connector was corroded. The software is all remotely updated, I do not touch that unit myself unless it is to check for status.
I made sure to seal the new connector in plasti-dip and also the joint between the fibreglass and the metal part on the antenna itself. The most likely cause for corrosion is condensation I think.

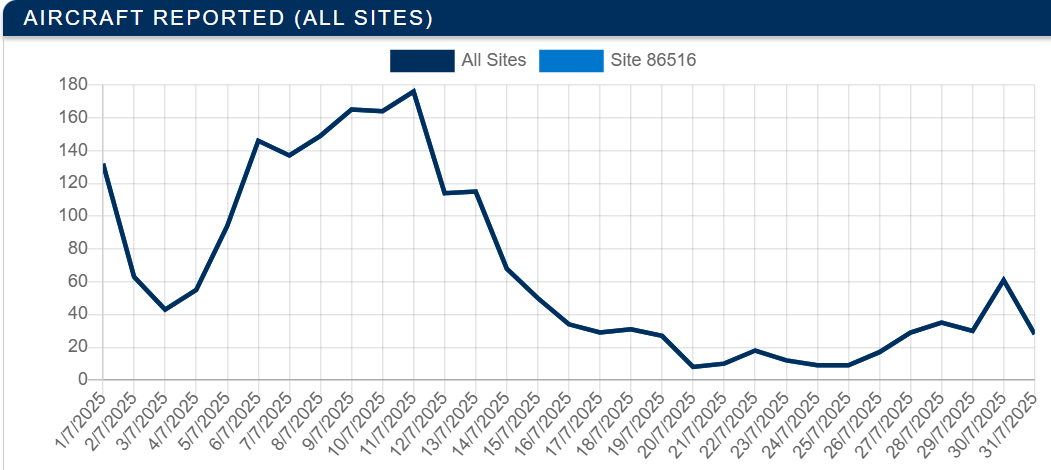

I see a clear improvement on number of receptions and range when i change from the 1090MHz antenna to my off band amateur radio one, so this is clearly not software related, but range/sensitivity due to bad contact inside the antenna itself.
I was wondering though if your GPS problem was software related though. The original antenna I presume has an active GPS antenna built in. I didnāt know if the 1090 part was also active and whether there was a software bias-tee. Iām afraid I donāt know much about FlightFeeder configurations. But if it is being remotely updated by FlightAware then we can assume it is correct software wise.
A few thoughts on this. I note the comment about āNo sectional charts using PIAwareā was posted in January and that these were going to be added on the next update. Given that you are using Version 10.0 of PiAware, version 10.1 was subsequently released and the current release (V10.2) is an update to that.
Since you mention that the equipment is from FlightAware, it might be worth checking with them as to whether they have any ideas why yours may not have yet been updated, which may solve your charts issue.
As a radio ham myself, Iād be tempted to look at replacing the antenna, rather than trying to repair same, as if there is water damage internally, it would be unlikely that any circuitry is intact. My antenna (AirNav ADS-B 1090 MHz Outdoor antenna with SMA connector) came from Radarbox.com (by way of Amazon) and seems to work well for me.
I see no problem with the chart on my receiver. I live in Europe, so perhaps it did not affect me? I have had the list of received planes all the time, and all that changed recently is few receptions and just on shorter ranges due to the antenna issue.
I will look into getting a new type of antenna, because I do not want this to happen again in a few years.
I just wonder if losing MLAT due to no GPS is a āproblemā or if I just can disregard it.
My system is a Raspberry Pi 4, with th V10.2 image installed, that Iāve put on myself using Rufus. There is no GPS reciever attached to my system, and my system reports MLAT signals fine, because FlightAware triangulates the aircraft position from other nearby receivers, so not having a GPS should not be a problem.
Just remember that your FlightAware account needs to have your location set, though, otherwise things do go a bit wobbly!!
Do not get confused between PiAware images and FlightFeeder images.
They are different images and the version numbers do not align.
Version 10 PiAware is not the same a Version 10 FlightFeeder.
In fact there is more than one hardware version of FlightFeeder and they have different software version numbers (the latest hardware FlightFeeders are now on Version 11)..
no, that isnāt the case. Flightfeeders canāt be maintained by forum members since the equipment is owned by FA itself and they maintain software and configurations.
Only recently they started selling Flightfeeder Proās where you own the equipment but FA maintains it for you.
I always refer people to adsbsupport@flightware.com since that is the place for support on FA flightfeeders.
I own all my equipment myself so never have to deal with a flightfeeder. (applied once, got turned down, way too many receivers in the Amsterdam area )
I have bought a new 9dBi antenna and external preamp with filter from Aliexpress.
I use an RG6 (75 Ohm) gelfilled cable. The impedance does not matter that much because of the preamp. Anyway the signals are better than with the FA supplied antenna when it was new.

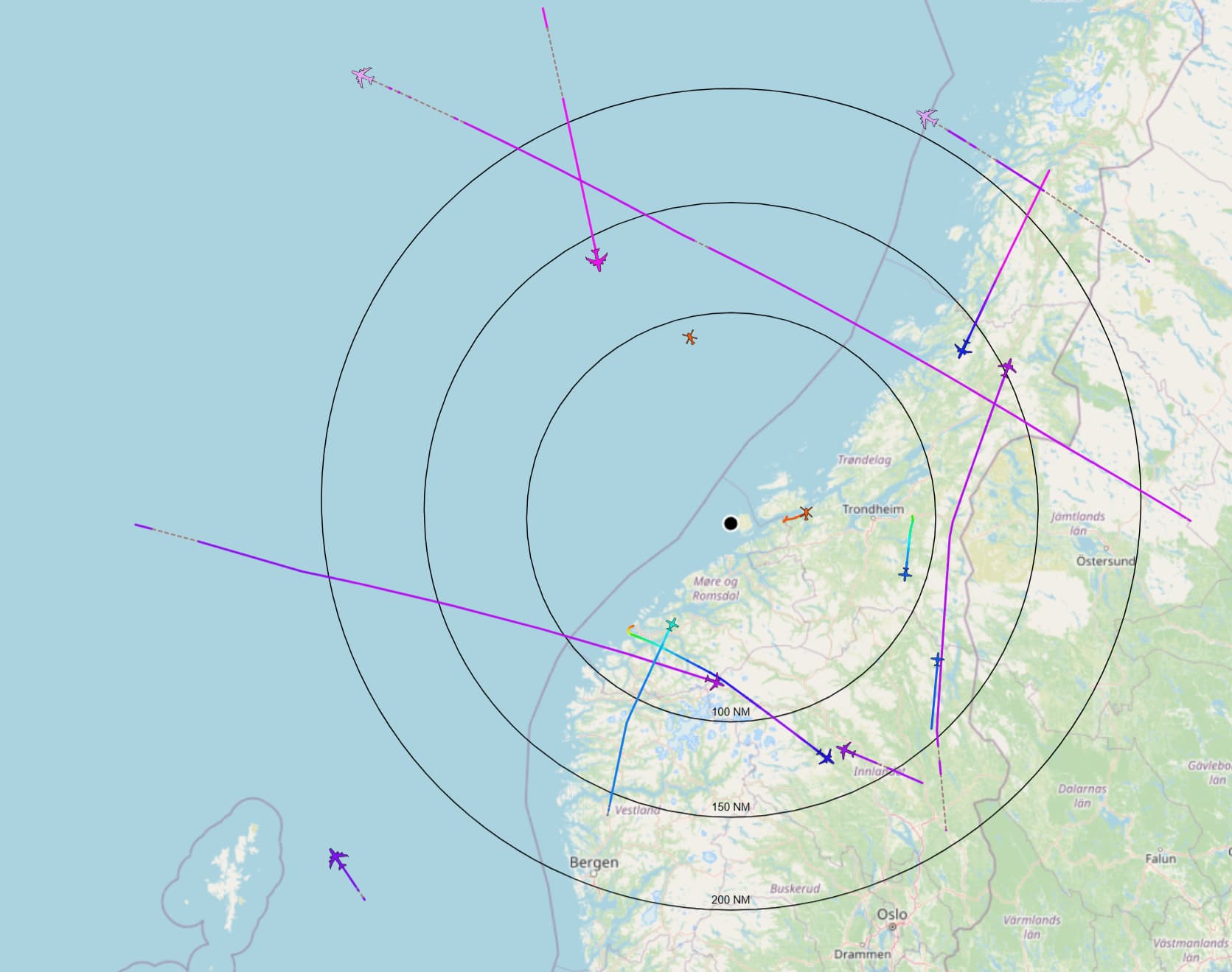

Signals along the horizon seems to reach further beyond 200NM and the ones overhead still are received well despite the flatter diagram.
)
